特點

Supports Pentium? M / Celeron? M processors
Up to 2.0GHz, 400MHz FSB
DDR DIMM x 1, max. 1GB
Integrated VGA, shared memory, CRT/LVDS
Integrated 10/100 BaseT Ethernet
Watchdog timer, Digital I/O, PCI to ISA bridge
Type 2 CF socket, Mini PCI slot
3 x USB 2.0, 4 x serial ports

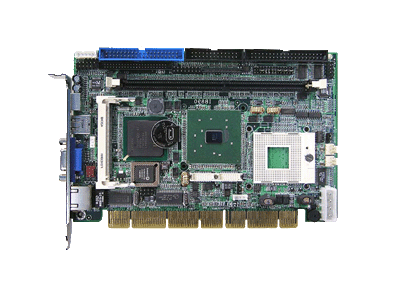

YH-890 產品規格

CPU Socket
Socket 479

CPU
Intel? Pentium? M, Celeron? M processor, up to 2.0GHz

Chipset
Intel? 855GME Chipset:
GMCH: 82855GME 732-pin mFCBGA
ICH4: 82801DB 421-pin BGA
FWH

Processor Side Bus Frequency
400MHz

L2 Cache
1MB (CPU integrated)

BIOS
Award BIOS, ACPI supported

System Memory
One DDR DIMM socket

Supports up to 1GB DDR 200/266/333 SDRAM

VGA
Intel? 82855GME built-in Intel? extreme Graphics
Intel? Dynamic Video Memory up to 64MB shared with system
LVDS support with resolution up to 1600x1200, 24bit, 2 DF13-20 LVDS connectors

LAN
ICH4 integrated LAN controller (10/100Mb) + PHY 82562EZ

Audio
ICH4 built-in audio controller + AC97 Codec

LPC I/O
Winbond W83627HF Parallel x1, COM1, COM2 (RS-232), FDC 1.44MB (Slim), IrDA, hardware monitor (3 thermal inputs, 6 voltage monitor inputs, 1 chassis open detection, 3 fan headers)

Secondary I/O
Fintek F81216D: COM3 & COM4 (RS-232)

IDE Interface
Two channels; supports Ultra DMA 33/66/100
40-pin box-header x 1 (IDE1), 44-pin box-header x 1 (IDE2)

FDD Interface
1 slim-type FDD connector

Watchdog Timer
Generates system reset; 256 levels

USB
Supports 3 USB 2.0 ports

IrDA
Pin header

Keyboard and Mouse Connector
PS/2 type, combo connector

Expansion Slots
Mini PCI slot

SSD
Type 2 Compact Flash socket

Edge Connectors
KB/Mouse Connector
USB Connector
VGA CRT Connector
RJ45 Connector

Power Connector
AT and ATX power connector

Form Factor
PISA Half Size CPU Card

Dimensions
186mm x 129mm

Operating Temperature

0~60 (32~140)

Storage Temperature

-20~80 (-68~176)

Relative Humidity

10%~90% (non-condensing)
